INachi graphic request thread

(Joshua L. Frederick) #1

CSST bushing/grommet graphic as mentioned here: http://www.nachi.org/forum/f2/corrugated-stainless-steel-tubing-protective-bushing-grommet-103538/

Also, a water softener improperly tapped into sanitary drain one would be great along with one that shows the proper way to do it (with an air gap, trap, etc.)

A house wrap picture would be swell, as well :D

Thanks in advance.

0 Likes

(Daniel G. Desiga) #2

Can this image get an update? It's hard to read. It can be found on the How to Inspect for Moisture Intrusion course. Thank you

http://education.nachi.org/coursemedia/course-57/images/Fig4_flashing.jpg

This one too.
http://education.nachi.org/coursemedia/course-57/images/Fig5_flashing.jpg

0 Likes

(Joshua L. Frederick) #3

AC condensate trap graphic also would be nice..

0 Likes

(Roy Lewis, CMI - North Florida Inspector) #4

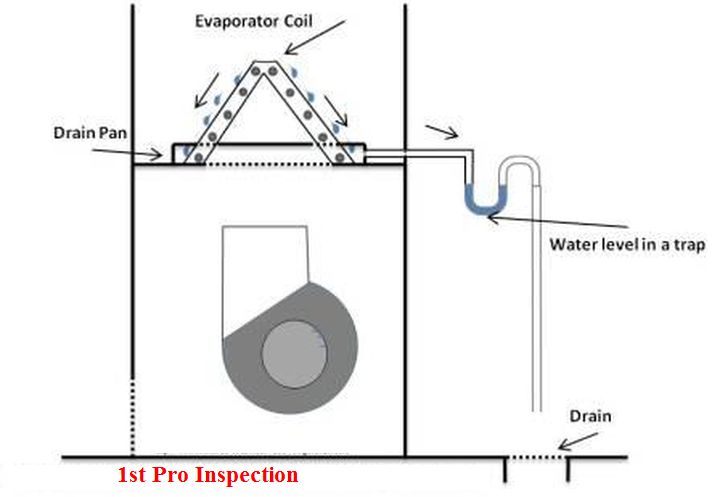

Would this work for you? Easy enought!

0 Likes

(Michael A. Clark, CMI) #5

[quote="rlewis5, post:4, topic:98750"]

Would this work for you? Easy enought!
[/QUOTE]

The trap needs a clean-out. Those darn things get full of muck and clog, and it's impossible to get a coat hanger through it! :|.)

0 Likes

(Jeffrey R. Jonas) #6

[quote="mclark2, post:5, topic:98750"]

The trap needs a clean-out. Those darn things get full of muck and clog, and it's impossible to get a coat hanger through it! :|.)
[/QUOTE]

The one in Roy's graphic must be restricted... the water level is too low in the trap!

0 Likes

(Nick Gromicko, CMI) #7

CK is on vacation this week, but when he returns, he'll work on building them.

0 Likes

(Joshua L. Frederick) #8

[quote="gromicko, post:7, topic:98750"]

CK is on vacation this week, but when he returns, he'll work on building them.
[/QUOTE]

Appreciate it!

0 Likes

(Joshua L. Frederick) #9

Some other ideas:

-Gas meter clearance graphic
-Don't vent bath fan to soffit graphic
-Venting bath fan out sidewall (best practice)graphic
Proper crawlspace vapor barrier graphic showing fastened to walls and seam tape
-Proper crawlspace/basement sill insulation (not fiberglass batts)
-Graphic showing why crawlspace/basement sill is a vulnerable area with air transfer
-No tees on horizontal plumbing drain lines graphic

Hundreds more to come :D

0 Likes

(Joshua L. Frederick) #10
  • Proper flex ducting strapping graphic
  • Proper flex ducting installation graphic
  • Plumbing vent to small/frost closure graphic
  • S-trap to P-trap conversion graphic
  • Metal column attachments at beam and floor graphic
0 Likes

(Joshua L. Frederick) #11

CSST bonding graphic

0 Likes

(Joshua L. Frederick) #12

Meter base J-block for vinyl siding or any J-block graphic(s)
Steel post column top plate dishing graphic
Hose bib pitch graphic

0 Likes

(Joshua L. Frederick) #13

Footing drain tile graphic

0 Likes

(Chris Krowiak) #14

I'm on it!

0 Likes

(Joshua L. Frederick) #15

Rubber roof defects/conditions like ponding, ripples, wrinkles, and "alligatoring"
Window hermetic seal failure/causes graphic
Gas fireplace safety damper clamp graphic
Ceiling fan clearance-to-floor graphic

0 Likes

(Joshua L. Frederick) #16

[quote="ckrowiak, post:14, topic:98750"]

I'm on it!
[/QUOTE]

Cool, thank you!

0 Likes

(Joshua L. Frederick) #17

KO flashing with vinyl siding
KO flashing with no mention of what type of siding

0 Likes

(Roy Lewis, CMI - North Florida Inspector) #18

Will these work?

0 Likes

(Joshua L. Frederick) #19

[quote="rlewis5, post:18, topic:98750"]

Will these work?
[/QUOTE]

Are these yours? Copyrighted? The whole point of this thread is useable graphics from a paid membership @ Inachi that we can legally use how we fill fit.
I was sued a few years ago for using an image off the net/google.

0 Likes

(Joshua L. Frederick) #20

Safety eyes 6 inch max from garage floor graphic
Safety reverse graphic
Fierwall breaches examples graphic

0 Likes
