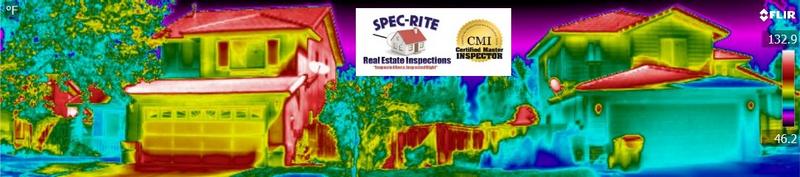

Nothing too fancy, but had a few pics and was surprised how easy it was to stitch panoramas together with Flir Tools +
I’m finding Tools+ easier to use to output reports vs Report (just one humble opinion) … I can select bunches of groups of pics and plug them into one of my templates for an Infrared Inspection Report…
ldapkus1
(ldapkus1)
August 16, 2013, 7:26pm
2
Do you have a panorama setting on your thermal imager?
tspargo
(Tim Spargo, CMI)
August 16, 2013, 7:53pm
3
nope, no panorama on t420
tspargo
(Tim Spargo, CMI)
August 16, 2013, 8:36pm
5
That’s just the standard 25 lens on there
ldapkus1
(ldapkus1)
August 16, 2013, 8:41pm
6
jritter:
What lens are you using?
You have to use a standard lens for panoramic, wide angle doesn’t work.
jritter
(John Ritter)
August 16, 2013, 8:49pm
7
Tim how many images did you put together?
tspargo
(Tim Spargo, CMI)
August 16, 2013, 9:00pm
10
8 Images. I simply had camera on tripod, and panned from left to right, leaving what I thought was enough overlap. I probably only needed 4-5 or so.
Processing the image in Tools+ was almost effortless.
jritter
(John Ritter)
August 17, 2013, 3:24am
11
Good job Tim Those are great images.
Our new site coming very soon will have ir and digital scroll.
jkaylor
(Jason Kaylor)
September 26, 2013, 11:31pm
12
Yeah FLIR Tools + is the real deal and amazing. Did you get the upgrade for free Tim since you already had reporter, or did you have to pay for it?
dandersen
(David Andersen, TN HI# 40)
September 26, 2013, 11:54pm
13
Very nice…
Have been “stitching” for years. Larry Kage got me started…
This process can make your I3 into a million x million pixel camera!
(But you still don’t have the sensitivity)
Anyone see at least two significant anomalies in the scans?
tspargo
(Tim Spargo, CMI)
September 27, 2013, 5:10am
14
Yep, upgraded via a link from Flir, I think it was for 8.5/9 purchasers (recent) as Tools+ is replacing it…
jkaylor
(Jason Kaylor)
September 27, 2013, 4:18pm
15

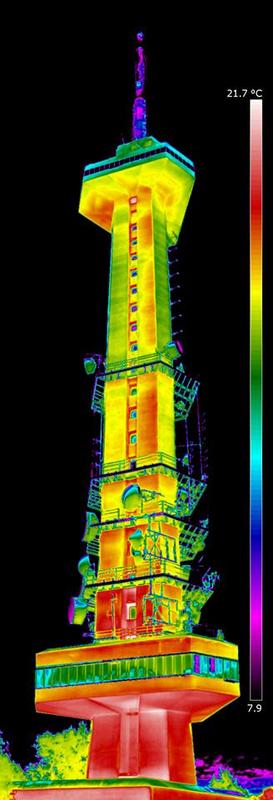

Here is another FLIR Tools + stitched image I saw on another board.
10 images to create it. Taken with a T640.
tspargo
(Tim Spargo, CMI)
September 27, 2013, 4:20pm
16
I can see spot on left side of right hand of two homes. Probably solar load?
Jason? Or anyone else?
dandersen
(David Andersen, TN HI# 40)
September 27, 2013, 9:23pm
17
These are pics modified from the original scan that Tim and I discussed by email.
Not that they are in fact problems but are exceptions that should maybe be considered.
Rather amazing that these small temperature differences can be pulled out from this distance. Stitching is a great tool!
I’ll let you guys hash over them and see what you come up with.
dandersen
(David Andersen, TN HI# 40)
September 27, 2013, 9:32pm
18
How about the neighbor…
If you run your camera in “Auto”, there is no way of seeing these types of things is there?
This is why Building Applications requires Building Cameras. Try this with an electricians camera.
I think this is a Flir T 420 with a FOL 18 lens.
Just add a little computer tuning…
